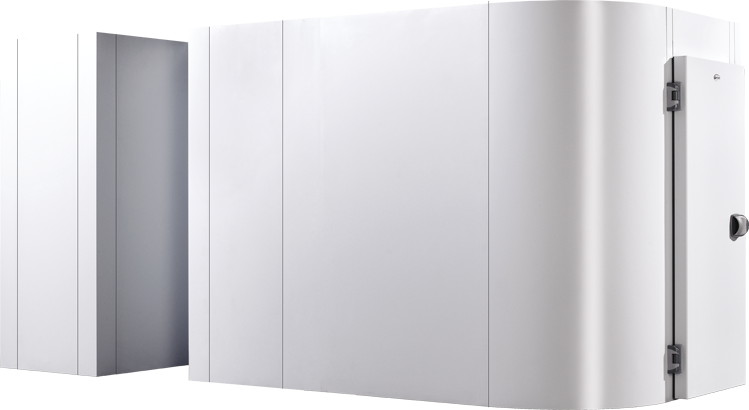

Cold rooms Hyper Box

- MODULARITY to optimize space
- DESIGN elegant and refined
- QUALITY of employed materials
- INSTALLATION easy and quick
- COMPLIANCE with hygienic and environmental stan

Technical features

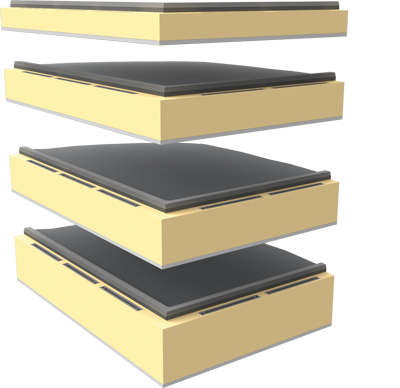

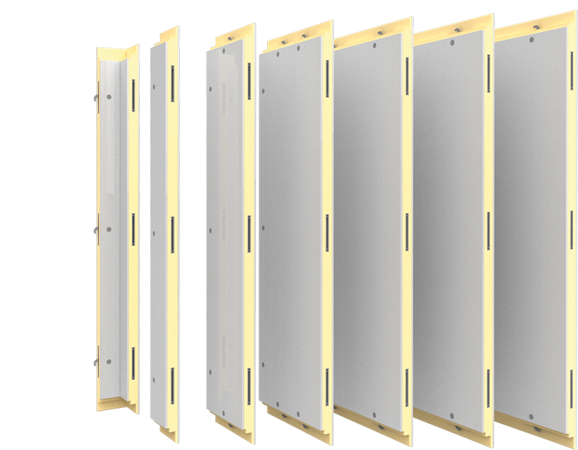

- Produced in 4 thicknesses, 7, 10, 12 and 15 cm
- Available in 6 internal Standard heights from 202 to 382 cm
- Possibility of creating internal compartments either with fixed hooked partitions or non-modular partitions with PVC profiles
- Internal/external covering in white plastic-coated galvanized sheet

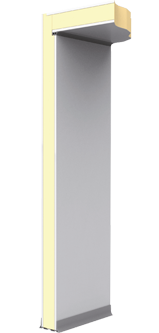

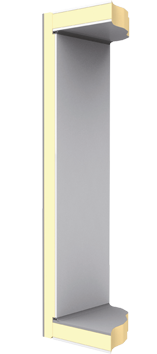

- Internal rounded corners
- Insulation by environment-friendly polyurethane with density 40 - 42 Kg/m3
- Floor in grey antislip plastic-coated galvanized sheet with wood reinforcement
- Standard door with net passage 80x190 h and key lock
- Hinged doors with net passage 70x190 h, 90x190 h and 100x200 h on demand
- Hinged doors with frame or sliding on demand
- Stainless steel covering on demand
- Monoblock, split or remote refrigerating units (on demand)

Floors

A - Plastic-coated steel thickness 0,7 mm. B - Chipboard support, thickness 10 mm. C - Reinforcement spacers. D - Chequered aluminium, thickness 3 mm. E - Non-slip AISI 304 stainless steel, thickness 0,6 mm. F - Phenolic resin, thickness 10 mm. G - Galvanized plate thickness 0,6 mm. H - R12 Non-slip AISI 304 stainless steel, thickness 1,2 mm.

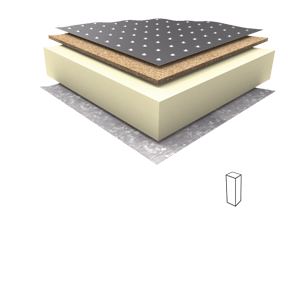

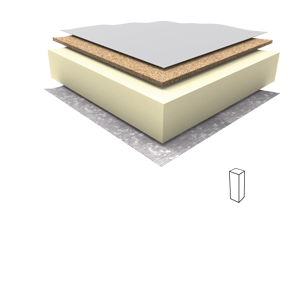

STANDARD ANTISLIP WALK-IN R9 FLOOR
Uniformly distributed static load max 2500 kg/sqm
Concentrated load 90 kg

Mod: ST2500

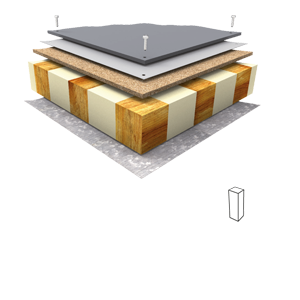

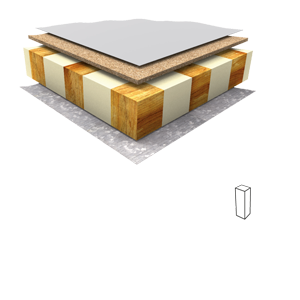

STANDARD ANTISLIP REINFORCED ROLL-IN R9 FLOOR
Uniformly distributed static load max 4000 kg/sqm
Maximum dynamic load 90 kg per wheel for trolley with soft rubber wheels and 4 cm minimum width
Concentrated load 140 kg

Mod: ST4000

ANTISLIP WALK-IN STAINLESS STEEL FLOOR
Uniformly distributed static load max 2500 kg/sqm
Concentrated load 90

Mod: IN2500

ANTISLIP REINFORCED ROLL-IN STAINLESS STEEL FLOOR
Uniformly distributed static load max 4000 kg/sqmMaximum dynamic load 90 kg per wheel for trolley with soft rubberwheels and 4 cm minimum width
Concentrated load 140 kg

Mod: IN4000

ANTISLIP EXTRA REINFORCED ROLL-IN R12 STAINLESSSTEEL FLOOR
Uniformly distributed static load max 5000 kg/sqmMaximum dynamic load 200 kg per wheel for trolley with soft rubberwheels and 4 cm minimum width
Concentrated load 200 kg

Mod: IN5000

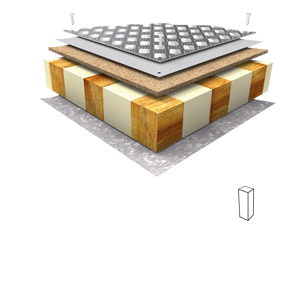

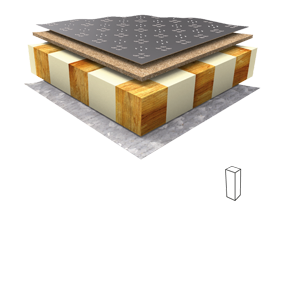

ANTISLIP CHEQUERED ALUMINIUM REINFORCEDFLOOR, suitable for PALLET JACK transit
Uniformly distributed static load max 5000 kg/sqmDynamic load for pallet jacks with total weight up to 1500 kg
Concentrated load 200 kg

Mod: AL1500

ANTISLIP PHENOLIC RESIN ROLL-IN PLATE REINFORCEDFLOOR
Uniformly distributed static load max 5000 kg/sqmDynamic load for trolleys with total weight up to 2000 kg
Concentrated load 200 kg

Mod: RF2000

From planning to realization

YOUR CUSTOM-MADE COLD ROOM

Management of complex and structured layouts thanks to our 20 cm panel modularity.
Possibility of producing special panels to create totally custom-made cold rooms.
Our totally “hooked” panels avoid tiresome and challenging modifications on the installation site

Cold rooms Hyper Box

Technical features

Self supportance for ceiling panels
